K
Overview
Use this operator if a constant value should be set anywhere in a measurement configuration.Operator ports
Output K: Floating point valuesThis is a Constant output, which does not output a signal, but a single value. A constant output does not have a sample frequency and is therefore recognized by Polybench to be a constant. Many calculations can be performed on constants as well as signals (or a combination of both). If an operator performs a calculation on constants only, it becomes a constant operator itself.
Constants and any other data source are allowed to be mixed without synchronization ("Synchronizer").
In a schematic, connectors that are connected to constant outputs are always colored black, while connections from other data sources may be colored differently.
Properties
Find more information about changing properties here: "Properties Viewer"Value
type: See descriptionThe constant value at the output channel.
Unit
type: See descriptionThe unit of the constant value. This value is optional and per default empty.
Caption
type: Word or phraseThe name of the object in the project. This name must not contain '.', '$' nor '@' characters.
For more information about the rules and usage of the Caption property, please refer to "Caption property - background and usage".
Documentation
type: See descriptionOptional documentation of this object. If this object is an operator, the Documentation text is displayed below the operator symbol.
Variable Parameters
Find more information about Variable Parameters here: "Variable Parameters"Value
type: See descriptionThe constant value at the output channel.
Details
The Constant does not produce a signal. So if you connect a constant to a viewer directly, no signal will appear. In order to convert the constant value to a constant signal, use the Clocked Constant ("Clocked Constant"). For more information about signal types, see "Timing properties of samples in a stream".It is possible to change the constant value from within your application. The Constant has a Variable Parameter, which can be changed by using a SET_PARAMETER Action ("SET_PARAMETER").
The Value of the Constant is displayed below the Constant symbol.

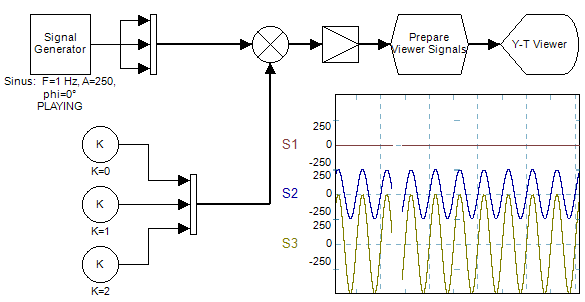

Example of use of the Constant. Each signal channel is multiplied by a different value. Also valid is to connect one constant to the multiplier, so that all three channels are multiplied by the same value.
